Create and maintain document types and input forms
CUSTADMIN access only
Document Types determine the document input form that appears when entering various payment information into the software. The system creates each document input form from a UDI (User Defined Input) template.
Creating and maintaining document types and input forms involves the following:
- Access document types
- Create a new document type
- Link an input form to a document type
- Edit a document type
- Import a new input form
Access document types
-
Select Maintenance, then select Document Types from the menu.
-
The Document Type Maintenance window opens. The left-hand panel lists existing document types. Either select an existing document type to edit or create a new document type. For more information, refer to Create a new document type and Edit a document type.
Create a new document type
This guidance is only for IRIS Financials Version 7.0.2103 or earlier. If using version 7.0.2223 or later, go to Create document types .
Create a new document type when you get a new cheque book that contains cheque numbers you have already used, or when you open an extra bank account to make payments from.
-
On the Document Type Maintenance window, select ADD NEW, then select DOCUMENT TYPE.
If the new document type has the same settings applied as those applied to an existing document type, you can copy the existing document type to create the new document type. Select the document type you want to copy from the left-hand panel, select ADD NEW, then select DOCUMENT TYPE (COPY). -
A <New item> appears in the left-hand panel and automatically selected. Enter a code (limited to 4 characters) for the document in Document type. (The code entered should include the 2 digit location code for multiple location establishment/organisation's.) Enter a title for the document in Title, for example BACS Payment.
-
Next, select the Number Ranges tab, then select an option from the Number sequence list. In the following example, Automatic isselected by default.
These options are available for Number sequence:-
None - lets you enter a document number when you create the document.
-
Automatic - automatically assigns the next available document number to the document type.
-
Ranged - (used for cheque book ranges) lets you enter a document number from the range of cheque numbers when you create the document.
-
Controlled - (used for cheque book ranges) assigns the next document number from the range of cheque numbers automatically when you create the document.
-
-

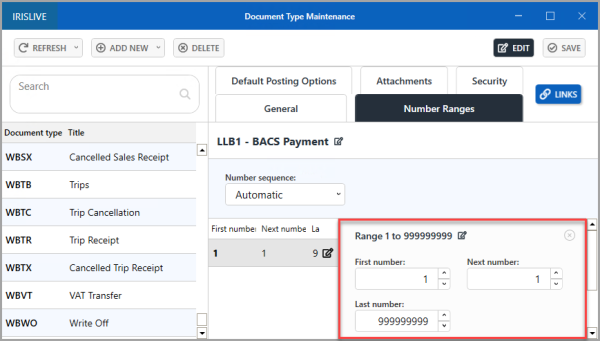

A range appears in the number range panel, select the range, then (if required for a specific range, for example, the numbers in a cheque book range), enter the first number in the range in First number, the next number to be available when the document type is next used to enter a payment in Next number, and the last number in the range in Last number.
-
Next, to make sure payment terms are taken into account when you post payments for accounts that have payment terms, select the Default Posting Options tab, then select Use payment terms. Then, to allow the document type to post with hold status, select Allow Held status.
-
Next, to allow users to input information into the document type, select the Security tab, then select Input allowed, then select SAVE. The document type can then be linked to the required input forms. For more information, refer to Link an input form to a document type.
-
An Update complete message appears. Select OK to close the message and return to the window.
Link an input form to a document type
-
Select Documents, then select UDI Settings from the menu bar.
-
The UDI Settings window opens. Select the required document type from the left-hand panel, select the Input Forms tab, select ADD NEW, then select the required input form in the Select an input form dialog.
-
The input form appears in the Title panel and is selected automatically. From the Purchase Payment panel, select the user groups you want to have access to the input form for that document type, then select SAVE.
-
An Update complete message appears. Select OK to close the message and return to the window.
Edit a document type
-
In the Document Type Maintenance window, select the document type you want to edit from the left-hand panel, then select EDIT.
-
If a field remains unavailable you are unable to change the details. Amend the fields required, then select SAVE.
-
An Update complete message appears. Select OK to close the message and return to the window.
Import a new input form
Create new document input forms in UDI Designer, then import them. You can also import an existing UDI document input form from another database.
-
Select Documents, then select UDI Settings from the menu.
-
The UDI Settings window opens. To import the new input form, select IMPORT UDI.
-
The Import UDI dialog opens. Select Drill (...) in UDI File Path to display the Select a file dialog, find and select the UDF file containing the input form to be imported, then select Open. The Form Name is automatically populated. If required, to amend the form name, select and overwrite the details in Form Name, then select OK.
-
The Import Succeeded message appears. Select OK to return to the UDI Settings window. You can then link the imported UDI to a document type by selecting it in the Select an input form dialog.
